Collaborative Project Requirements DSL

• A collaborative research project has several use-case partners, each contributing one or more use-cases, that will drive the requirements and evaluate the technologies developed in the project.
• Requirements are grouped into semantically cohesive clusters (work-packages)
• The importance of each requirement can be different for every use-case (shall/should/may)

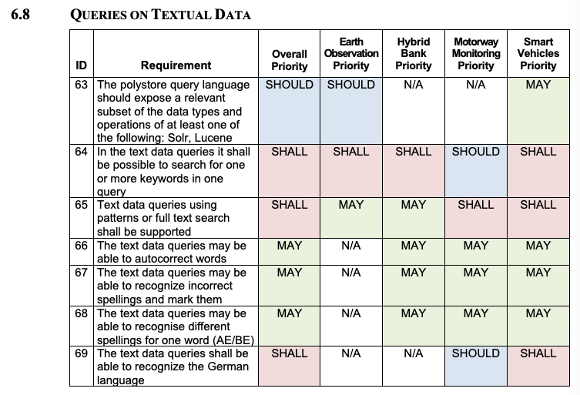

• An example from a real project is below

Exercise

• Create a DSL for designing such requirements
• Create a model that conforms to the DSL and exercises all its features at least once

Solution

Try to design your own metamodel before you check out the solution below (part of the solution ZIP).

@namespace(uri="http://cs.york.ac.uk/eng2/requirements/1.0")
package requirements;

// A Project has partners that will drive the requirements
class Project {
	val Partner[*] partners;
	val WorkPackage[*] workPackages;
}

// A partner contributes one or more use-cases
class Partner {
	attr String name;
	val UseCase[*] useCases;
}

// Requirements are grouped into work-packages
class WorkPackage {
	attr String name;
	attr String description;
	val Requirement[*] requirements;
}

class Requirement {
	id attr String identifier;
	attr String description;

	// The importance of each requirement can be different for every use case
	val RequirementPriority[*] priorities;
}

class RequirementPriority {
	ref UseCase useCase;
	attr Priority priority;
}

enum Priority {
	SHALL;
	SHOULD;
	MAY;
	NOT_APPLICABLE;
}

class UseCase {
	attr String name;
	attr String description;
}
