Additional exercises

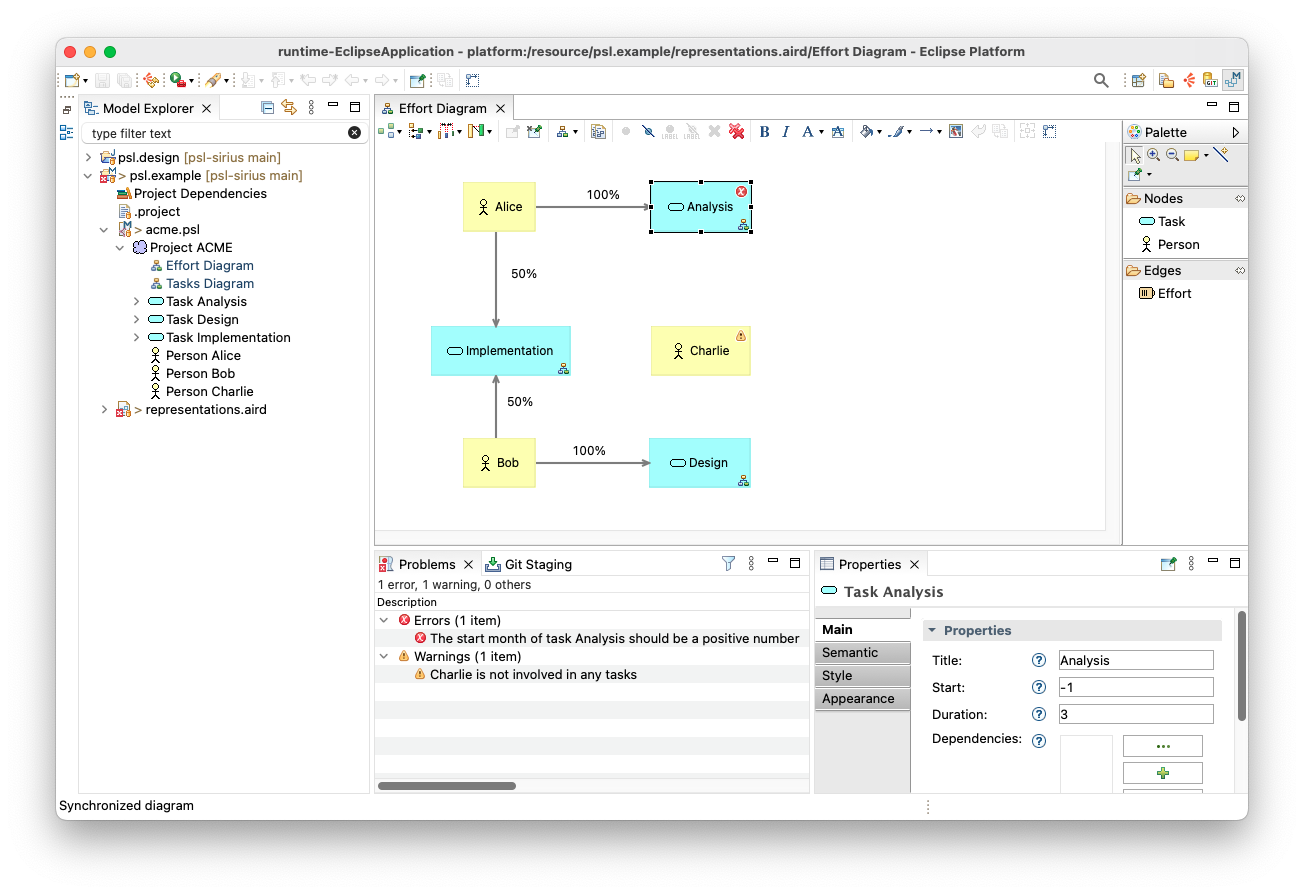

Add support for model validation to the Sirius editor you developed in the previous practical using EVL, as shown here.

Your validation project (the equivalent of psl.validation in the example above) should be an Eclipse plug-in project that will host your EVL constraints as well as a plugin.xml file that will bind the constraints to the namespace of your metamodel (see below).

<?xml version="1.0" encoding="UTF-8"?>
<?eclipse version="3.4"?>
<plugin>
   <extension
         point="org.eclipse.epsilon.evl.emf.validation">
      <constraintsBinding
            compose="true"
            constraints="your-constraints.evl"
            namespaceURI="your-language-namespace-uri">
      </constraintsBinding>
   </extension>
	<extension point="org.eclipse.ui.ide.markerResolution">
		<markerResolutionGenerator
        class="org.eclipse.epsilon.evl.emf.validation.EvlMarkerResolutionGenerator"
        markerType="org.eclipse.emf.ecore.diagnostic"></markerResolutionGenerator>
		<markerResolutionGenerator
        class="org.eclipse.epsilon.evl.emf.validation.EvlMarkerResolutionGenerator"
        markerType="org.eclipse.sirius.diagram.ui.diagnostic"></markerResolutionGenerator>
	</extension>
</plugin>

Your validation project should also require the org.eclipse.epsilon.evl.emf.validation plug-in in its MANIFEST.MF (as psl.validation does).
